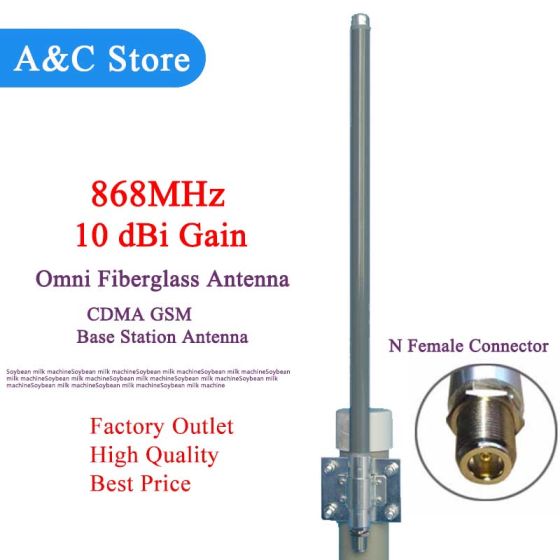

868MHz antenna omni fiberglass antenna 10dBi outdoor roof glide monitor repeater UHF antenna RFID Lo
868MHz antenna omni fiberglass antenna 10dBi outdoor roof glide monitor repeater UHF antenna RFID LoRaWAN monitor antenna...
|
Electrical Specifications |
|
|
Frequency range（MHz） |
806-960 |
|
Bandwidth（MHz） |
70 |
|
Gain（dBi） |
10 |
|
Half-power beam width（°） |
H:360 V:20 |
|
VSWR |
≤1.5 |
|
Input Impedance（Ω） |
50 |
|
Polarization |
Vertical |
|
Maximum input power（W） |
50 |
|
Lightning protection |
DC Ground |
|
Input connector type |
N Female |
|
Mechanical Specifications |
|
|
Dimensions (mm) |
Φ20*900 |
|
Antenna weight（kg） |
0.75 |
|
Operating temperature（°c） |
-40～60 |
|
Rated Wind Velocity（m/s） |
60 |
|
Radome color |
Gray |
|
Mounting way |
Pole-holding |
|
Mounting hardware（mm） |
￠40-￠60 |
| Product Name | 868MHz antenna omni fiberglass antenna 10dBi outdoor roof glide monitor repeater UHF antenna RFID Lo | ||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description |
|
||||||||||||||||||||||||||||||||||||||
| SKU | 32694420721 | ||||||||||||||||||||||||||||||||||||||
| Weight | 1.000000 | ||||||||||||||||||||||||||||||||||||||
| selling_potential | 3 | ||||||||||||||||||||||||||||||||||||||
| With Built-in Battery | No | ||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||
