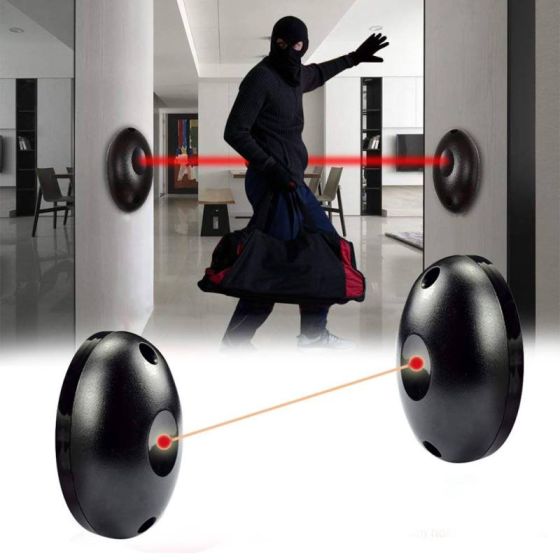

12V-24V Active Photoelectric Single 1 Red Beam Alarm Clock Sensor Barrier Detector For Gate Door Win

Technical Parameters:

◆Product Model: ABO-20L

◆Outdoor warning distance: 10m

◆ indoor warning distance: 20m

◆Induction speed: 30ms

◆Alarm output-General: Normally closed and normally open (NC&NO) Contact capacity AV/DC 30V/0.5mA

◆Alarm linkage: Yes

◆Working voltage: DC12-24V

◆Shell material: PC

Product size: 7.5*4.9*2.5cm

◆ Anti-glare up to 50,000 LUX, built-in automatic adjustment of strong light filtering system to avoid the influence of glare or car light

◆The all-weather integrated structure of fully sealed rainproof (fog), dustproof (worm), etc. makes it work normally in harsh environments.

◆The detector will automatically increase the sensitivity when encountering dense fog or bad weather (AGC circuit)

◆High level of RFI/EMI resistance

◆Unique digital filter circuit design

◆High-power transmitting device, photographic margin is up to 90% High-power infrared receiving tube, low-power processing technology Lightning protection circuit design

◆With rain cover design

◆C type relay output

◆The beam interception period can be adjusted to make it more flexible and adaptable.

◆Professional anti-interference optical cover

';
